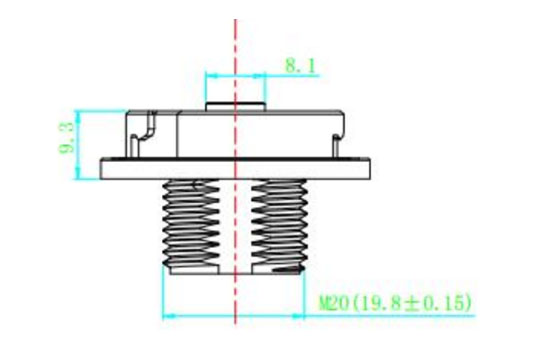

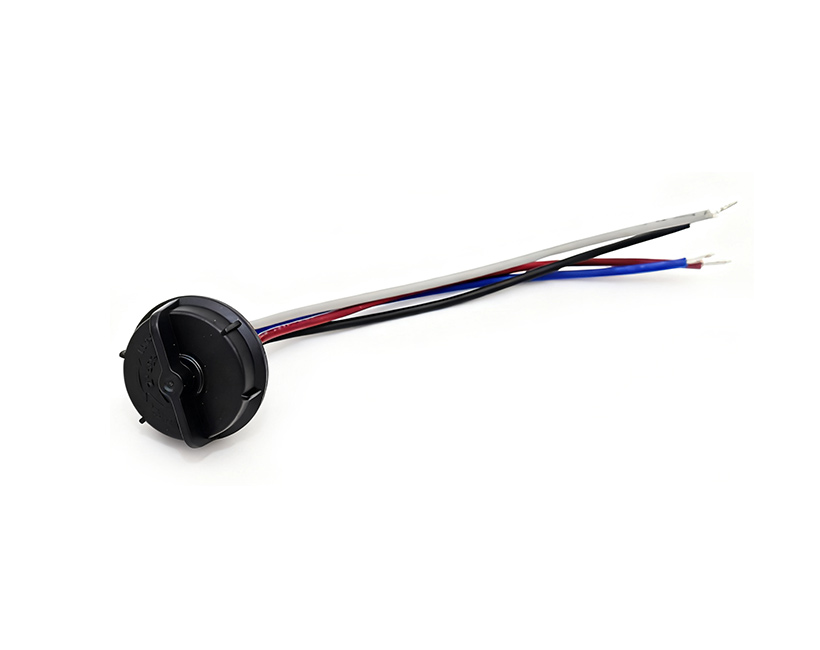

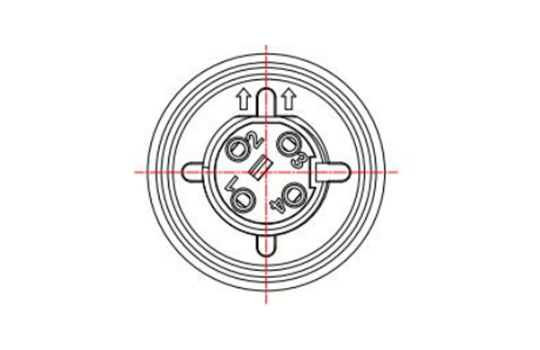

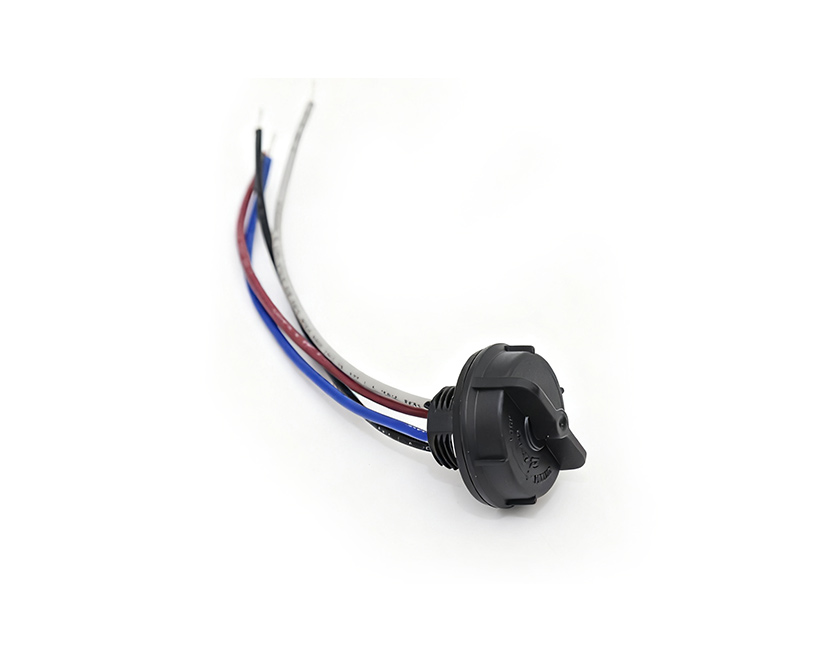

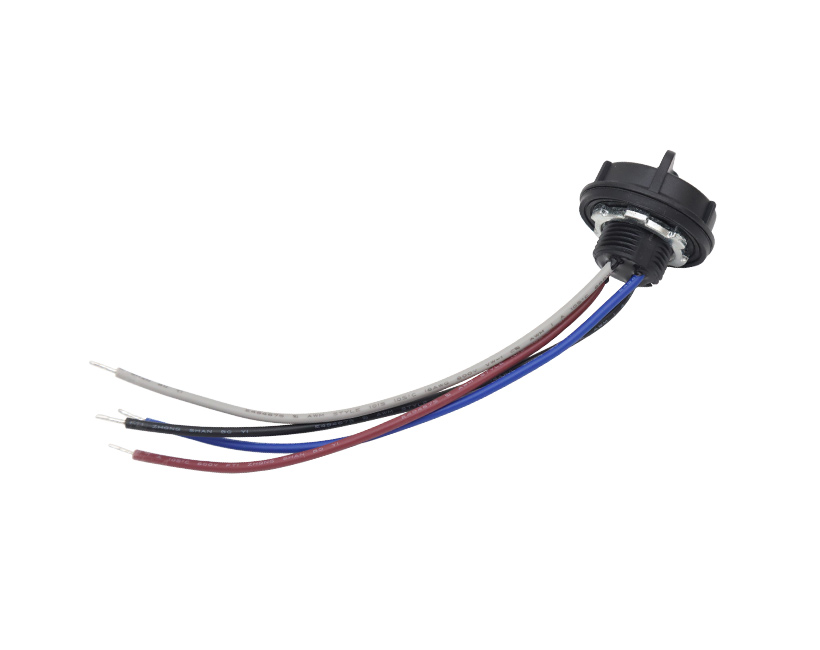

ZYS-04W complies with Zhaga Book 18 international standard interface requirements (Z-LES-R Z-LEX-C) ANSI C136.58 Applicable to road and area lighting equipment - dimming control between external locking type photocontroller and ballast or driver
Application
• Street and laneway lighting
• Area lighting and commercial and residential lighting
• Indoor parking lots and public lighting
• Outdoor street lights, mining lights, corridor lights, wall lights, etc.
| Agency | Standard | Agency File Number |
Provides Zhaga Book 18 regulatory interfaces to facilitate the development of standard equipment for related lighting applications ;
Robust twist-lock contacts for reliable power interconnection ;
Can provide DALI 2.0 protocol (Pin2-3) wiring port to meet 0-30V dimming function;

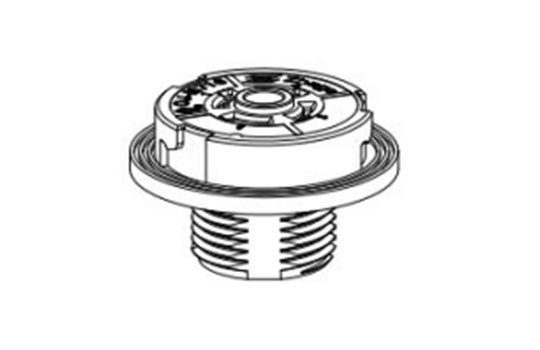

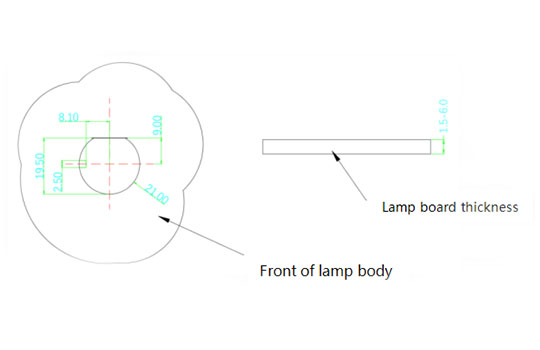

light control base is fixed by a compression nut assembly for integration into new or existing lighting applications ;
Available for lighting equipment wire rated at 105° ;
The length of the wiring can be customized according to customer requirements, and is easy to adapt to different lamps ;
The plastic material is VO grade, UV-resistant, safe and reliable in application ;
| Product Model | ZYS-04W |
|---|---|
| Rated current (A) | 1.5A |
| Rated voltage (V) | 30VDC |
| Frequency (Hz) | 50/60HZ |
| Rated impulse voltage (V) | 800V |
| Waterproof grade | IP66 |
| Work Environment | -40℃-70℃ |
| Insulation Materials | PBT flame retardant VO |
| Contact material (terminal) | Phosphor copper silver plating |
| Environmental requirements | ROHS 2.0 |
| Wire specifications | Wire Length | Stripping Tin | Color |
|---|---|---|---|

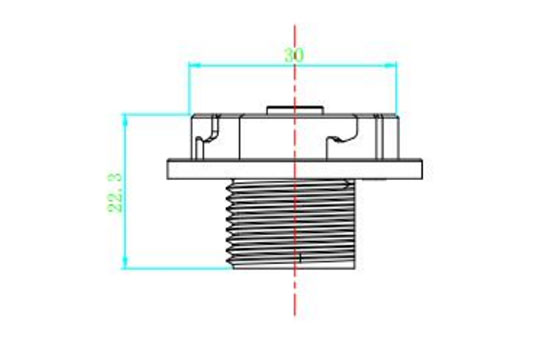

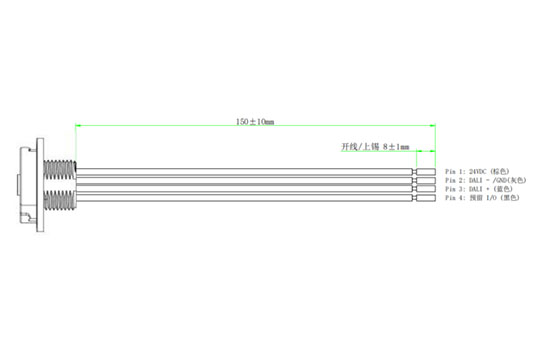

| Wire Specifications | Cable length ( customizable) | Tail processing (customizable) | Load Application |

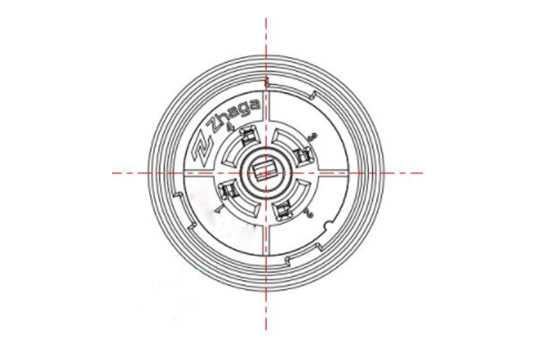

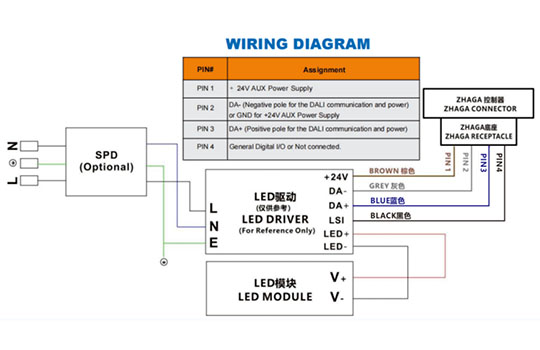

| UL 101 5 18 AWG / UL 101 5 20 AWG / UL 101 5 22 AWG | Pin 1 : 150 ±10mm, Pin 2 : 15 0±10mm, Pin 3 : 15 0±10mm, Pin 4 : 15 0±10mm | Open line 8 ±1mm, Immersion tin 8 ±1mm | Pin 1: 24VDC (brown), Pin 2: DALI - /GND ( grey ), Pin 3: DALI + ( blue ), Pin 4: Reserved I/O ( black ) |
